HIGH-CAPACITY ROBOTIC STACKER

Within each NAVSTORS-equipped magazine, a single-axis high-capacity Robotic Stacker is positioned so that it can raise and lower payloads with SPI's to and from mobile Payload Carriers or OGV's.  Tooling on the Stacker locks and unlocks the SPI.

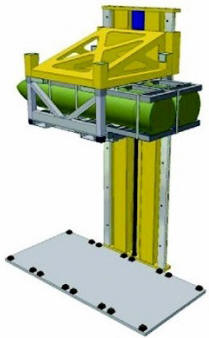

Right: High-Capacity Robotic Stacker shown holding
Bomb Pallet with SPI above Payload Carrier


Right:  Detail of Robot Tooling
that grasps Standard Payload Interface (SPI) and actuates internal locking mechanism.
